15KV वर्ग फ्यूजिबल लिङ्क
- Model: 15KV Class
The 15 kV Class Fusible Link is a high-reliability overcurrent protection component engineered for overhead distribution networks. It acts as the intentional weak point in the circuit, interrupting excessive current to prevent equipment damage, feeder faults, or extended outages. Built for harsh outdoor environments, it keeps power lines working with the calm steadiness of a sentry on a wind-swept pole.
न्यून हानि, उच्च अवरोधक क्षमता
Resetting Mechanlsm&Emergency Control, Easy for Malntalnance
प्रमाणीकरण पूरा गर्नुहोस्
मुख्य विशेषताहरू
1. High-Voltage Protection (15 kV Class)
Designed for medium-voltage distribution lines, providing dependable fault isolation during short-circuit and overload events.
2. Precision-Calibrated Fuse Element
Ensures accurate melting time and consistent performance under ANSI/IEEE standards.
3. Durable, Weather-Ready Design
Manufactured with corrosion-resistant materials that withstand UV exposure, temperature swings, salt spray, and long-term outdoor operation.
4. Easy Field Replacement
Compatible with standard cutout designs, enabling fast installation and minimal downtime.
5. Wide Current Ratings Available
Suitable for transformers, capacitor banks, tap lines, and lateral protection.
-
मानकहरू
❶ मोडेल र विशिष्टता
१५ केभी वर्ग 23 केभी वर्ग 34.5 केभी वर्ग वक्र सन्दर्भ गर्नुहोस् 15TC6K 23TC6K 34.5TC6K 6 15TC8K 23TC8K 34.5TC8K 8 15TC10K 23TC10K 34.5TC10K 10 १५टीसी१२के 23TC12K 34.5TC12K 12 15TC15K 23TC15K 34.5TC15K 15 १५टीसी२०के 23TC20K 34.5TC20K 20 15TC25K 23TC25K 34.5TC25K 25 15TC30K 23TC30K 34.5TC30K 30 15TC40K 23TC40K 34.5TC40K 40 15TC50K 23TC50K 34.5TC50K 50 15TC60K 23TC60K 34.5TC60K 60
❷ रेटिङ अवरोध गर्दै। आवेदन भोल्टेज एकल चरण लाइन हो र / वा लाइन गर्न तीन चरण लाइन
दर अवरोध गर्दै अनुप्रयोग भोल्टेज दर अवरोध गर्दै (आरएस सममित एम्पियरहरू 7.2 केभी[सम्पादन गर्ने] 3500 १२.० केभी[सम्पादन गर्ने] 3000 १४.४ केभी[सम्पादन गर्ने] 2500 २३.० केभी[सम्पादन गर्ने] 1200 34.5 केभी[सम्पादन गर्ने] 1200 -
उत्पादन आयाम
कुञ्जी आयाम सिंहावलोकन
निम्न रेखाचित्रहरूले आंशिक उत्पादन आयामहरू मात्र देखाउँछन्।
ईन्जिनियरिङ् रेखाचित्र वा पूर्ण निर्दिष्टीकरणहरूको पूर्ण सेटको लागि, कृपया हामीलाई सम्पर्क गर्नुहोस् [📪nancywang@ketranele.com].
-

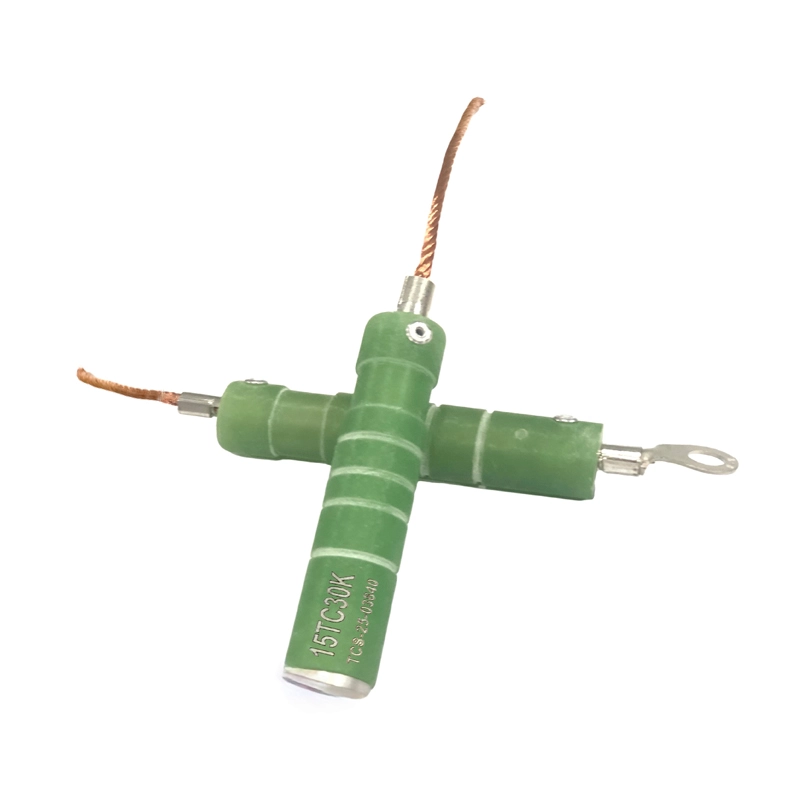

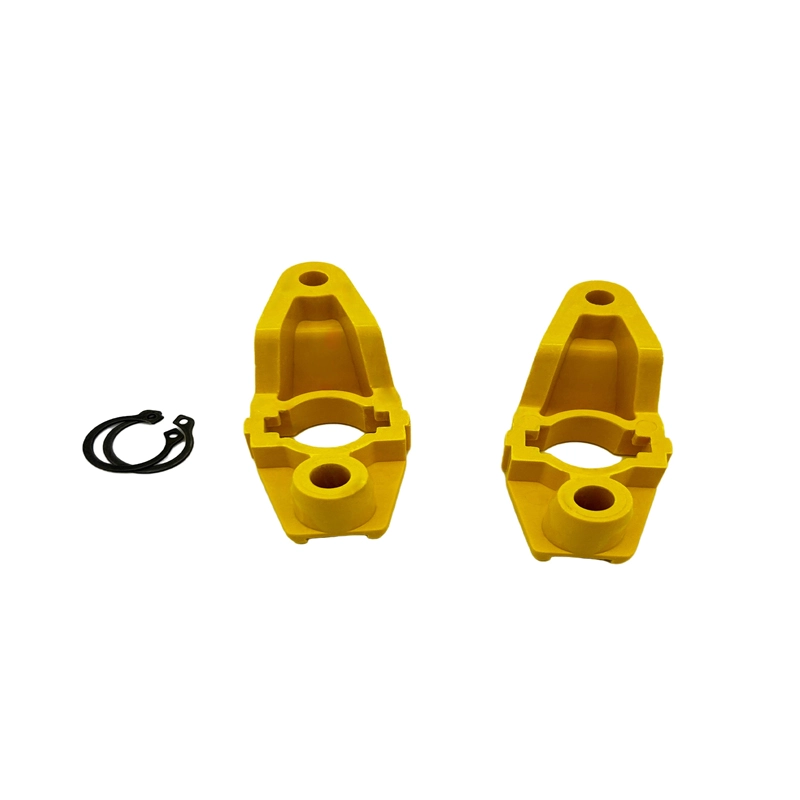

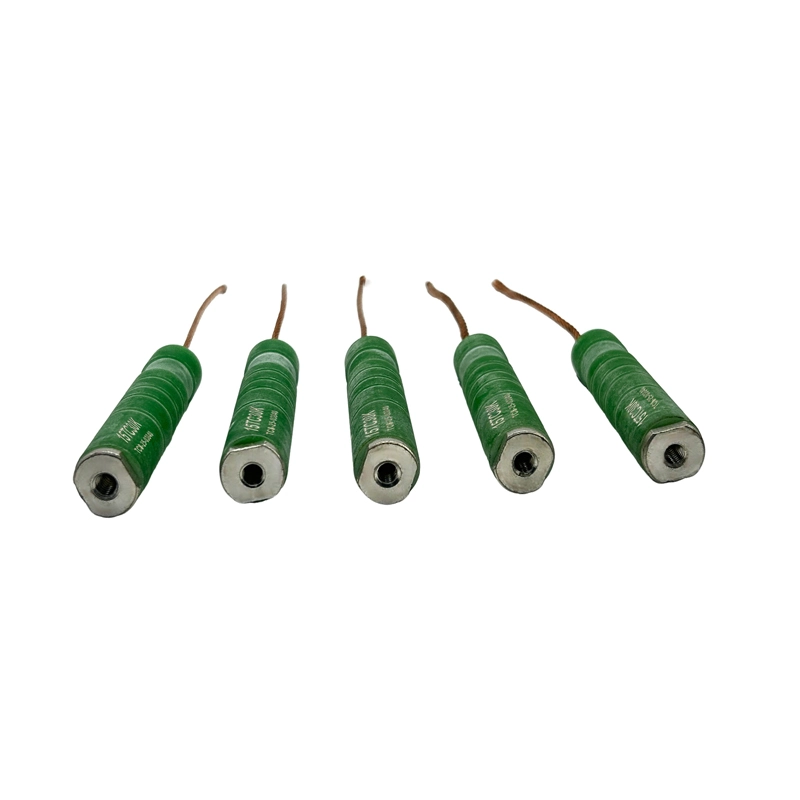

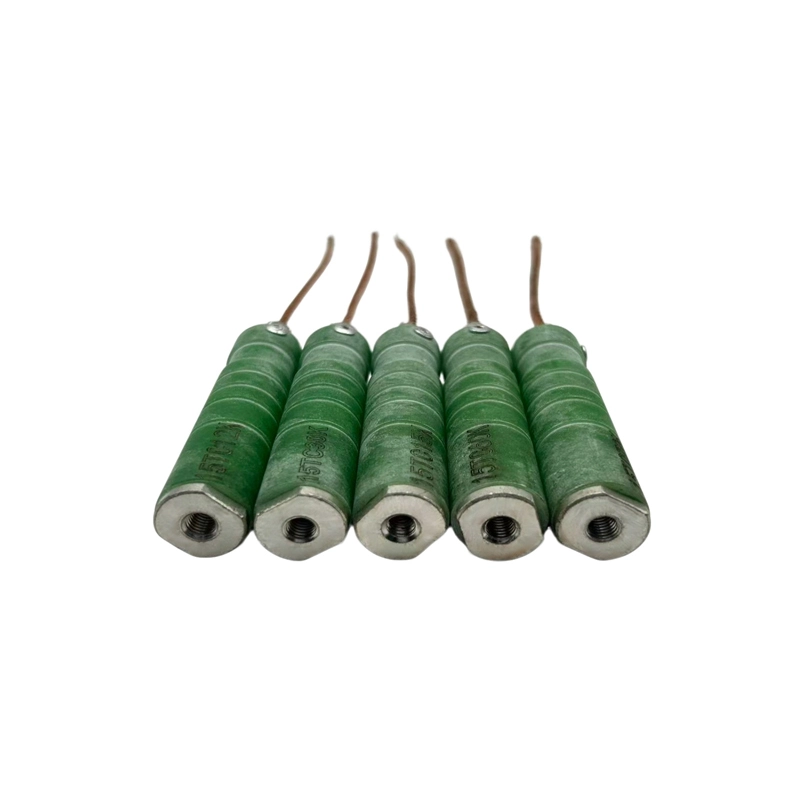

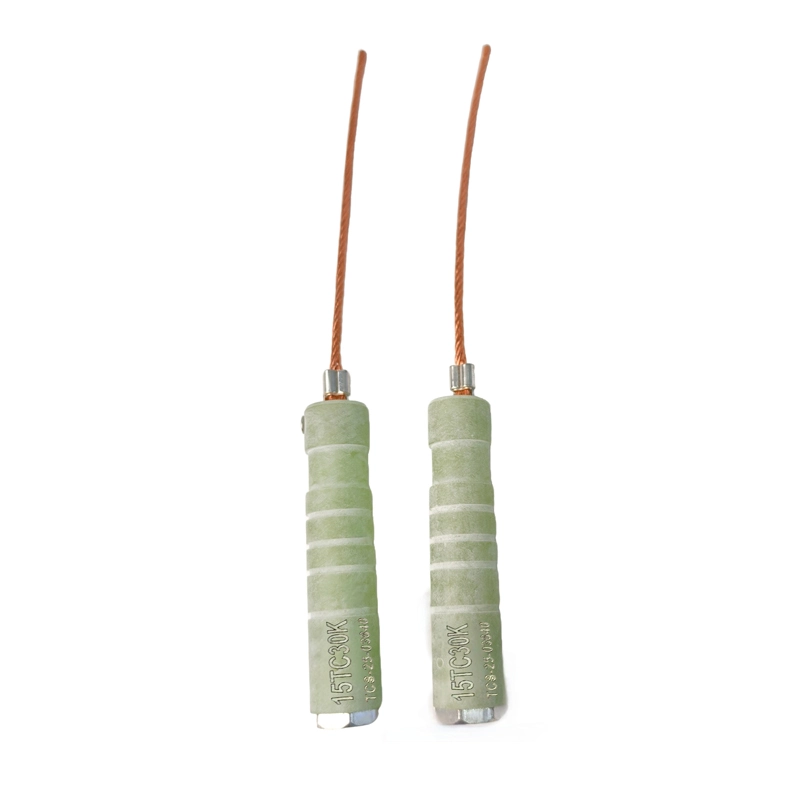

फोटोहरू
अनुप्रयोग
