23KV वर्ग फ्यूजिबल लिङ्क
- Model: 23KV Class
The 23 kV Class Fusible Link is designed to deliver dependable overcurrent protection for medium-voltage overhead distribution systems. Serving as the deliberate weak point in the circuit, it isolates faults quickly and prevents damage to transformers, lateral lines, and key distribution assets.
न्यून हानि, उच्च अवरोधक क्षमता
Resetting Mechanlsm&Emergency Control, Easy for Malntalnance
प्रमाणीकरण पूरा गर्नुहोस्
मुख्य विशेषताहरू
1. Rated for 23 kV Class Systems
Ensures fast and predictable fault isolation in medium-voltage utility networks.
2. Precision-Melt Fuse Element
Provides consistent time-current characteristics compliant with ANSI/IEEE standards.
3. Weather-Resistant Construction
Manufactured for long-term outdoor endurance: UV-stable, corrosion-resistant, and temperature-rugged.
4. Seamless Compatibility
Fits standard cutouts for quick replacement and reduced service downtime.
5. Multiple Current Ratings
Supports a variety of distribution protection needs, from transformers to tap lines.
-
मानकहरू
❶ Model and specification
१५ केभी वर्ग 23KV class 34.5KV class Refer to curve (K) 15TC6K 23TC6K 34.5TC6K 6 15TC8K 23TC8K 34.5TC8K 8 15TC10K 23TC10K 34.5TC10K 10 १५टीसी१२के 23TC12K 34.5TC12K 12 15TC15K 23TC15K 34.5TC15K 15 १५टीसी२०के 23TC20K 34.5TC20K 20 15TC25K 23TC25K 34.5TC25K 25 15TC30K 23TC30K 34.5TC30K 30 15TC40K 23TC40K 34.5TC40K 40 15TC50K 23TC50K 34.5TC50K 50 15TC60K 23TC60K 34.5TC60K 60
❷ Interrupting rating. Application Voltage is single phase line to ground and/or three phase line to line
interrupting Rating अनुप्रयोग भोल्टेज Interrupting Rating(rs symmetrical amperes 7.2 केभी[सम्पादन गर्ने] 3500 १२.० केभी[सम्पादन गर्ने] 3000 १४.४ केभी[सम्पादन गर्ने] 2500 २३.० केभी[सम्पादन गर्ने] 1200 34.5 केभी[सम्पादन गर्ने] 1200 -
उत्पादन आयाम
कुञ्जी आयाम सिंहावलोकन
निम्न रेखाचित्रहरूले आंशिक उत्पादन आयामहरू मात्र देखाउँछन्।
ईन्जिनियरिङ् रेखाचित्र वा पूर्ण निर्दिष्टीकरणहरूको पूर्ण सेटको लागि, कृपया हामीलाई सम्पर्क गर्नुहोस् [📪nancywang@ketranele.com].
-

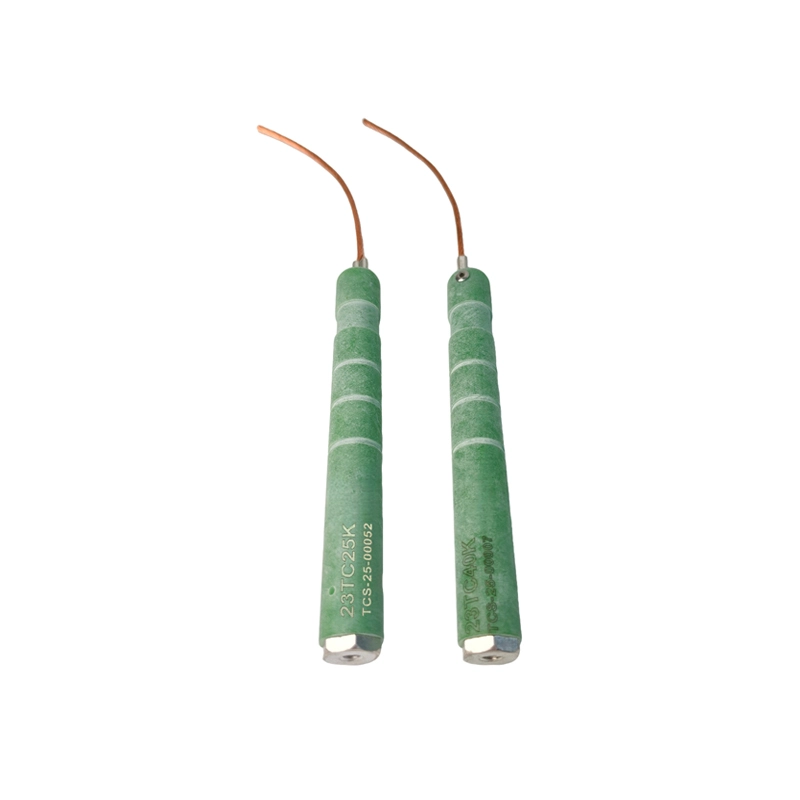

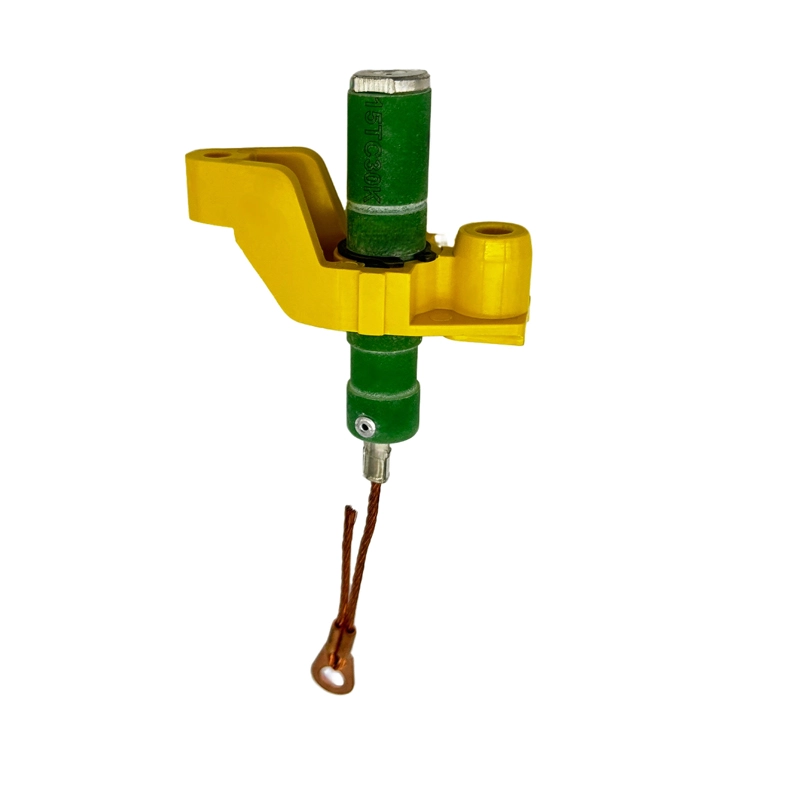

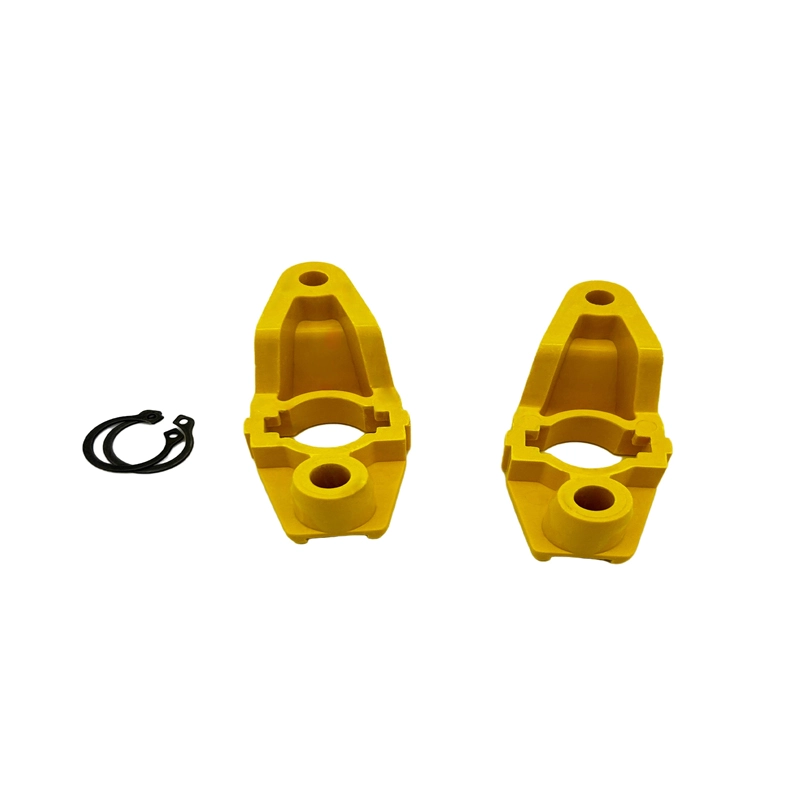

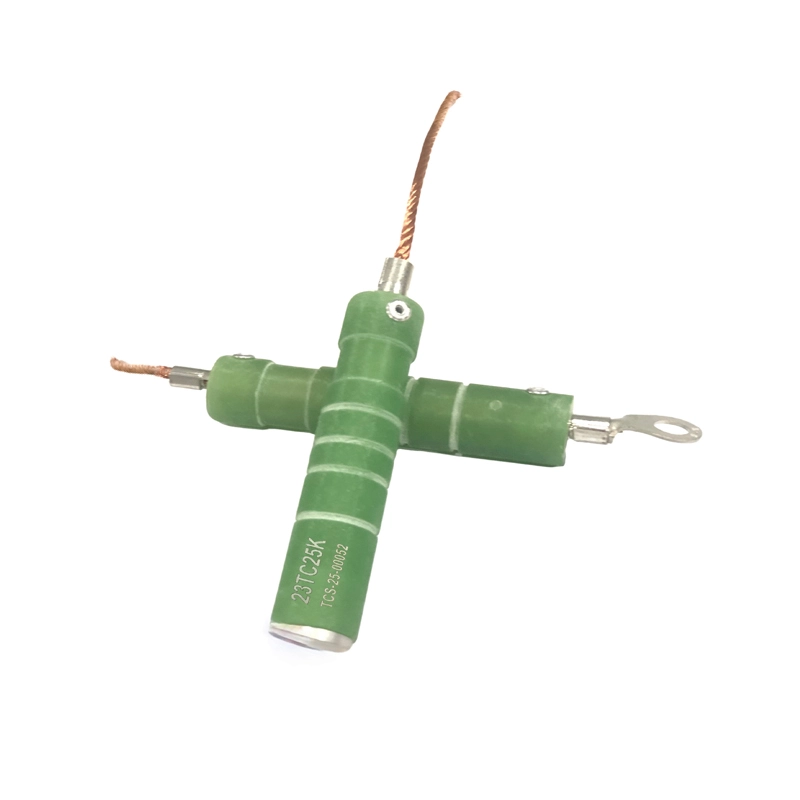

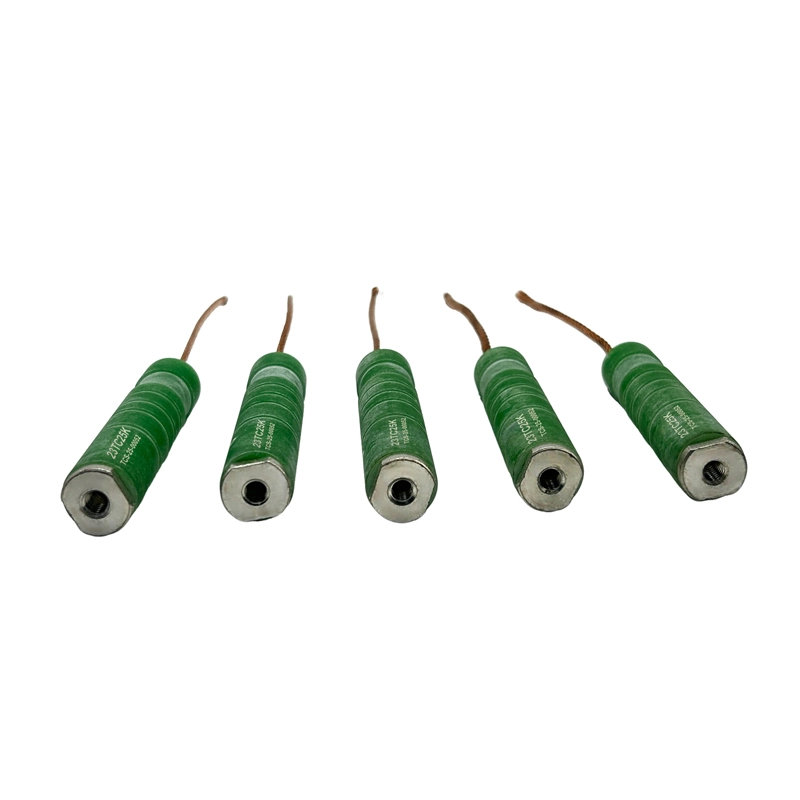

Photos
